LABORATORY STIRRERS
With step less mechanical regulation TYPE AG. 66U |
|
LABORATORY STIRRER AG.66U
with only one FAST SHAFT |
|
|
This device is composed basically of a motor and a continuous
mechanical speed variator which, placed in the same housing of
die-cast aluminium alloy, form a single and compact block. By
means of a pressure screw and two shock absorbers, this layout
allows perfect self-balancing of the mating of the motor and the
variator, thus ensuring high performance and long life of the
stirrer.The laboratory stirrer AG. 66U type comes from the AG
66 model. It has been tested for many years and now it is even
more powerful: 30 watt rating.

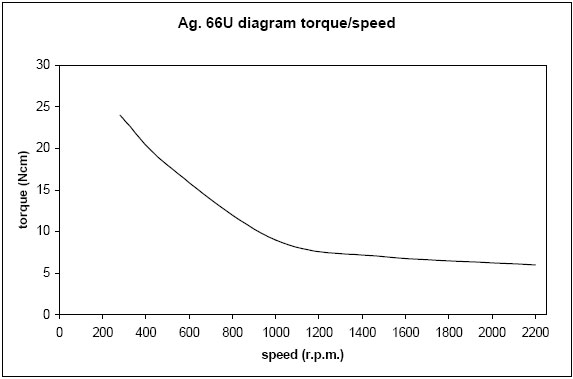

The transmitted power is constant: whatever is the chose
speed, it remains constant. |
|
MAIN CHARACTERISTICS |
-
MOTOR
-
single phase with condenser
-
input power 70 Watt
-
output power 30 Watt
-
shaft mounted on ball bearings
-
efficient self ventilation
-
silent operation
-
overheating protection 130° C
-
simple and robust construction
-
requires no particular maintenance
|
- CONTINUOUS MECHANICAL SPEED VARIATOR
- built according to the cone and roll clutch principle
- this system allows one to obtain from 280 to 2200 r.p.m.
speed regulation with a knurled knob, indexed scale with
speed control indicator
- exit shafts with through hole, allow easy height
regulation of the stirring rods
|
- HOLE for support rod: allows the
stirrer to be placed in the desired position.
- SWITCH bipolar and light.
- OUTPUT CABLE 2 m. long and earthed
plug; supply voltage 220 V 50 Hz (115 V 60 Hz on demand).
- CHUCK self centering and chrome plated,
with 3 jaws, complete with key; grip capacity: 0 - 8 mm.
- WEIGHT Kg. 3,100 including support rod
and chuck.
UTILIZATION
- It is suitable for fluid substances or liquids
with light viscosity (capacity till 25 litres).
ACCESSORIES (on request)
- Stand
- Special clamp
- Agitation bar
Pursuant to instructions 73/23 CEE - 93/68
CEE e 89/336 CEE |
|
|
|
